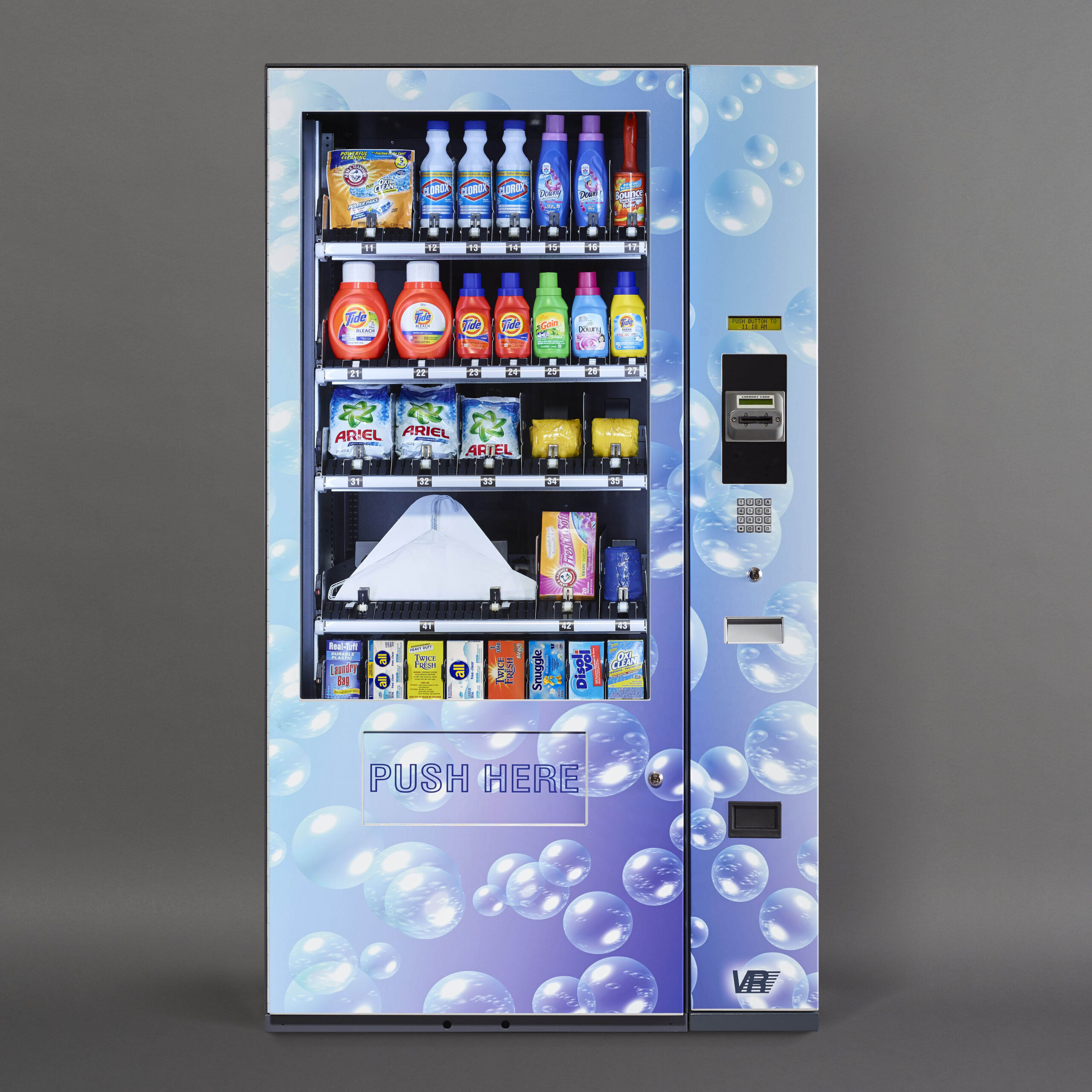

Vision ESCU TAOS

Call (800) 777‒1802 for pricing.

The ES has a large elevator to vend big items. The CU payment unit can be configured to accept coins, bills and/or cards and can operate up to four ES units. These two units combined create TAOS — “the add on system”;

Select Options

Clear
SKU: 1200-TAOS-NC Category:

Description

The CU can operate up to four (4) ES vending units.

The large elevator of the ES unit lets laundries vend a wide variety of soap products, even really big items like a 75oz bottle of detergent.

Up to 6 fully flexible shelves for maximum capacity

The tray can hold up to 10 channels (selections)

The large SmartVend elevator delivery system guarantees a product vends and eliminates drop damage, even really big items like a 75oz bottle of detergent or a 16″ hanger.

When equipped with an optional compressor you can vend soda, water, candy, and snacks, sandwiches, oranges, apples, yogurt or even a 1/2 gallon of milk.

Technical Features

  • Continuous system check and self-diagnostics
  • Accountability and Sales data
  • Large capacity locked cash box
  • High-security lock with three (3) point locking bar
  • Injected foam provides insulation and cabinet strength, lowers power consumption, increases cooling efficiencies
  • Anti-corrosive and anti-oxidation cabinet material
  • The MDB protocol specifies the format for communications between the vending machine controller (VMC) and the peripheral devices (coin mechanism, dollar bill acceptor or card reader).

Additional information

Weight 990 lbs
Dimensions 39.250 × 38.250 × 72 in
ES dimensions

38.5 × 31.5 × 72 in

CU dimensions

37.5 × 6.75 × 72 in

Maximum consumption

650w
